Automated Pneumatic Automatic Spot Resistance Bolt Spot Welder Welding Machine
Product Introduction:
In the fields of automobile manufacturing, electronic assembly, etc., the automatic point projection welding machine for screws has become the core equipment for fastener welding. It achieves seamless connection between screws and workpieces through precise alignment and high-speed welding. The equipment has leak proof and error proof welding functions, compatible with materials such as stainless steel and carbon steel, and is particularly suitable for high cycle production lines, helping enterprises achieve intelligent upgrades.
Features:
1.Energy-saving and efficient welding power supply: the main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.
2. Excellent welding quality: stable intermediate frequency DC output, uniform formation of fusion nuclei, reduced spatter and virtual welding, high weld strength, and smooth appearance; Suitable for welding high conductivity materials (such as aluminum, copper) and multi-layer plates.
3. Intelligent control: Digital PLC or microprocessor control, can accurately adjust parameters such as current, time, pressure, etc., supports multiple sets of program storage; Equipped with automatic compensation function to offset the impact of power grid fluctuations or workpiece surface oxidation.
4. Automation integration: can be combined with robotic arms and conveyor belts to achieve fully automated production, suitable for assembly line operations; Equipped with photoelectric sensors or vision systems to accurately locate the position of solder joints.
5. Durable and low maintenance: Medium frequency transformers have small volume, low heat generation, and long service life; The water cooling system ensures the continuous and stable operation of the equipment.
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |

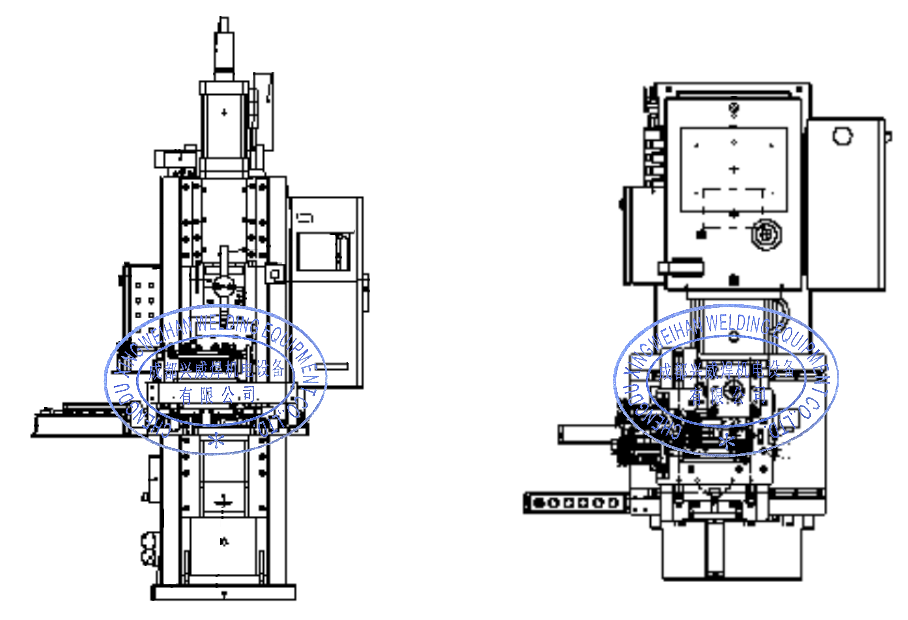

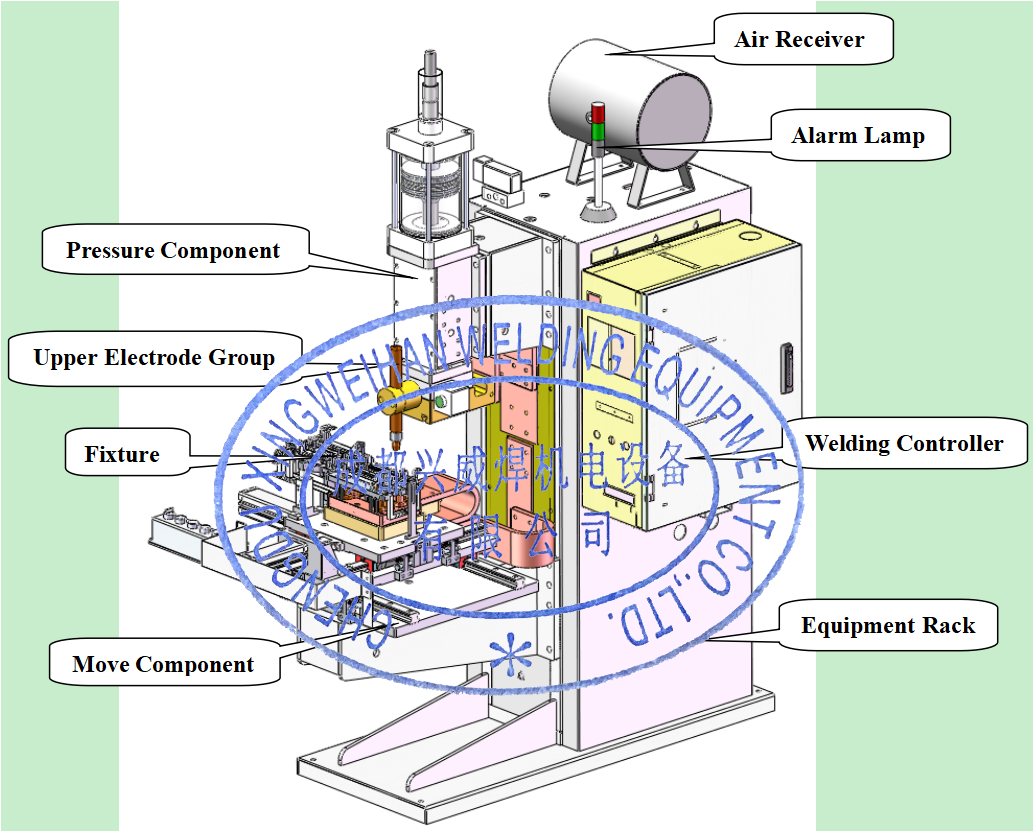

General Structures:
Detailed Images:

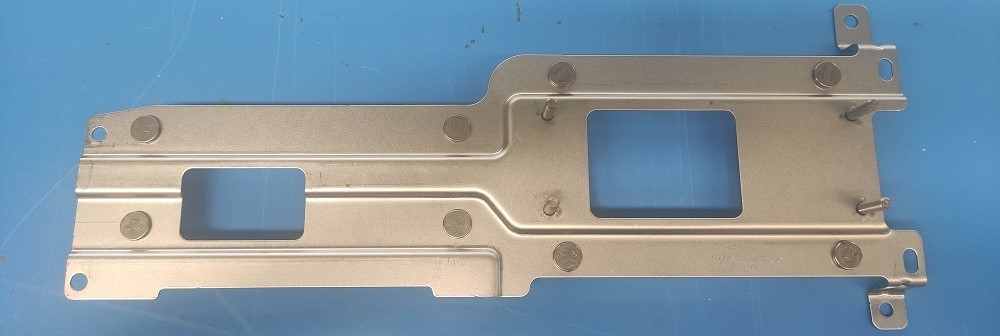

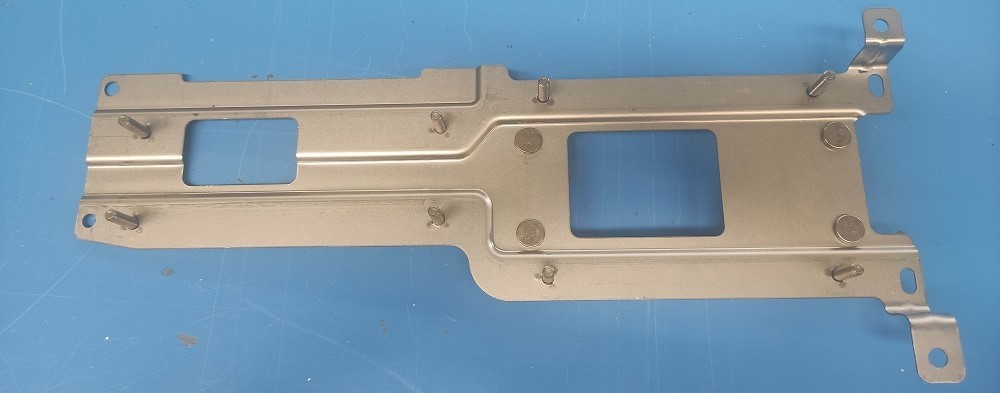

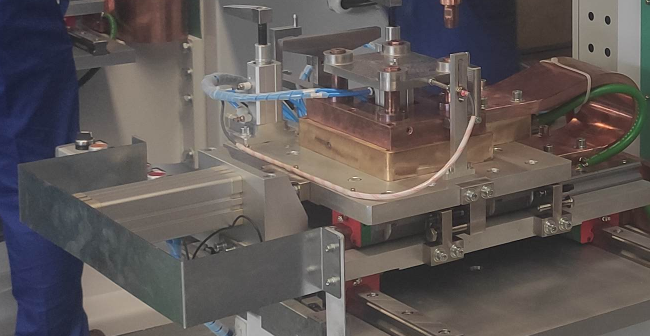

Customized Fixtures and Moving Components: The section mainly consists of fixtures and moving components. Manually replacing fixtures can achieve welding of two different workpieces. During welding, the workpiece can move back, forth, left, and right on the moving component. Each type of workpiece is completed in four stages, with the first three stages being projection welding and the fourth stage being spot welding.
Cylinder: Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

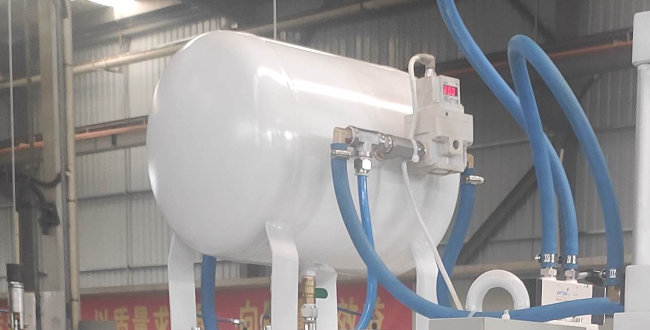

Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

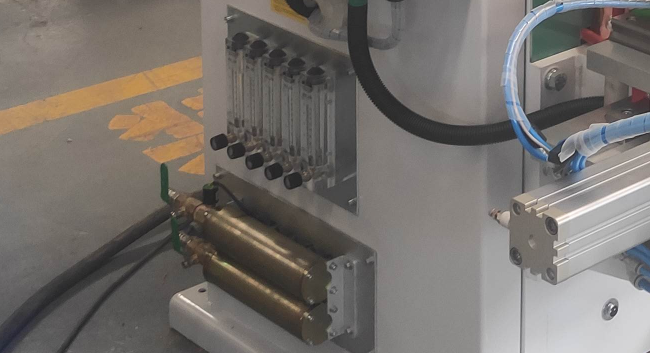

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
